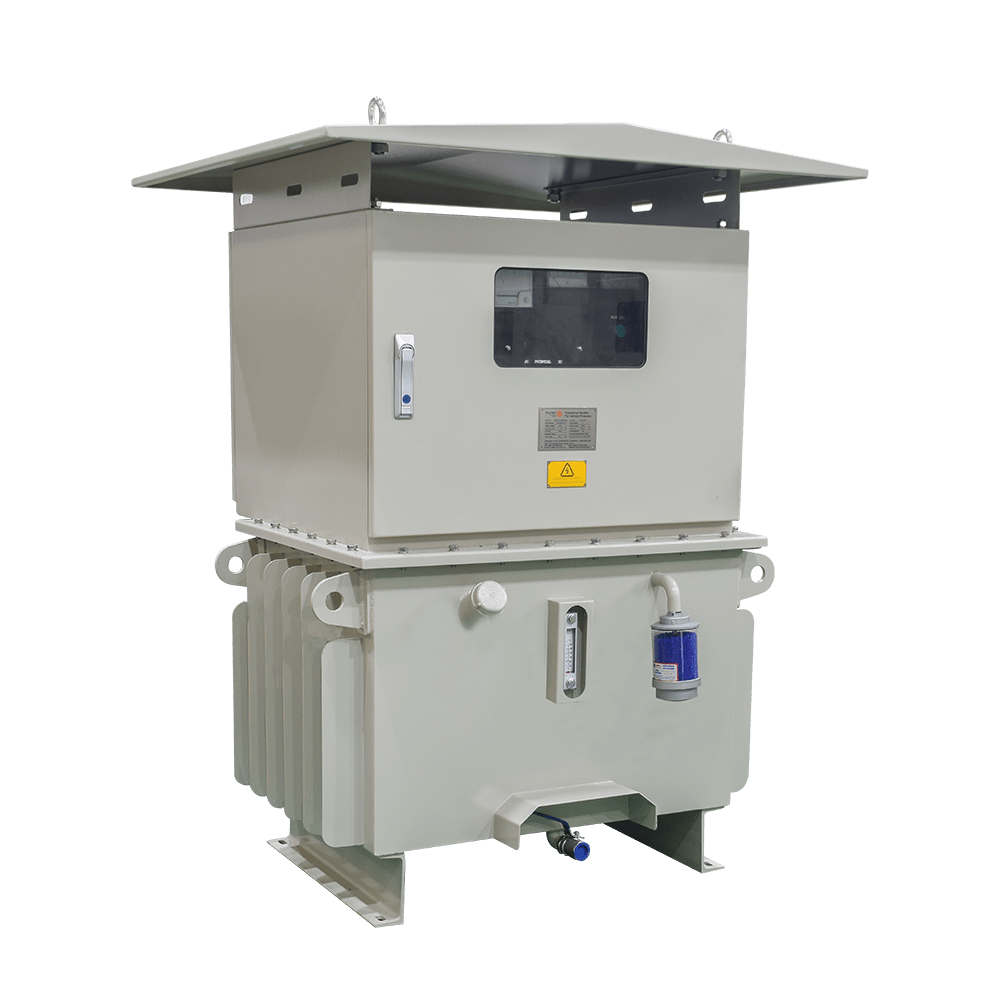

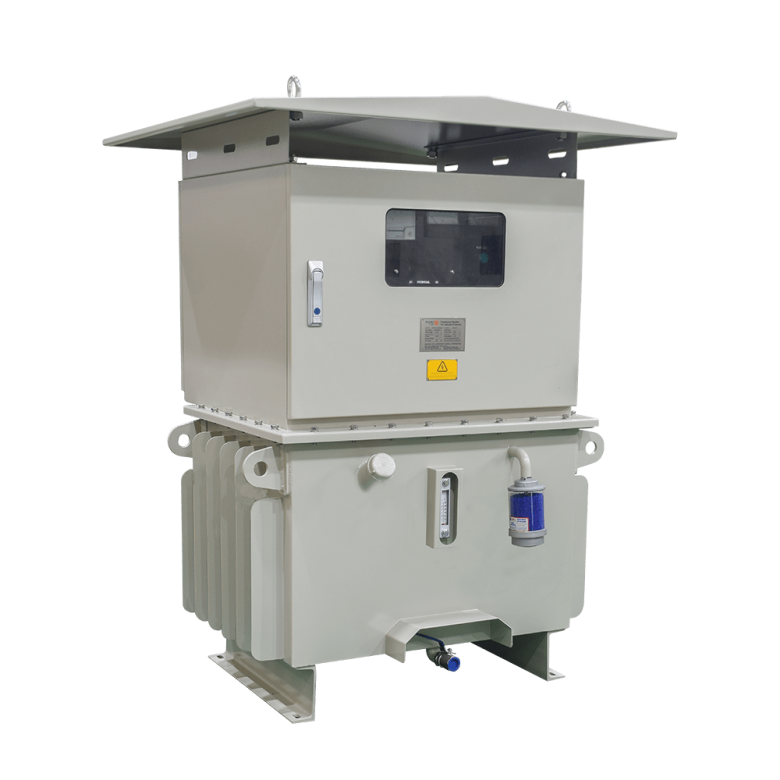

Oil cooled transformer rectifier is the simplest cooling system, where natural convectional flow of oil is used to reduce the temperature gradient between transformer and the outside ambient. It is generally used in severe weather conditions where air cooled rectifier will not withstand these weatherly conditions – such as deserts, offshore, atmospheric aggressive environment, hazardous and explosive environments, etc.
AC Input: Single-phase: 220±10%V, 50±5%Hz, Three-phase: 380±10%V, 50±5%Hz
DC Output: 100V, 50A
Insulation Resistance: >10mΩControl
Range: -3V~3V
Control Accuracy: 10mV
Noise: <80 dB
IP Level: IP55, IP66
Design Life 30 years
